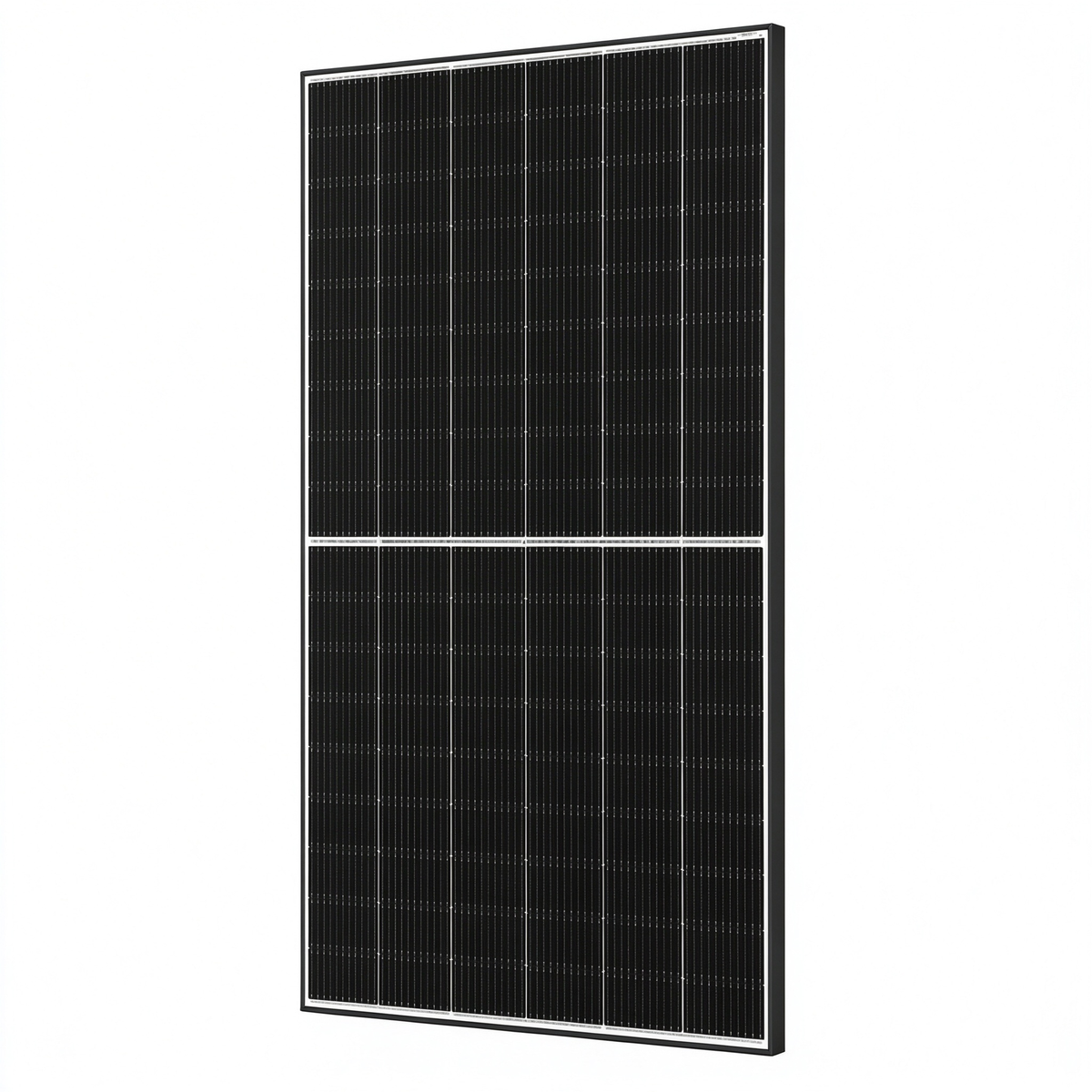

JA Solar N-Type 460 W - Bifacial Black Frame Solar Panel
JA Solar N-Type 460 W - Bifacial Black Frame Solar Panel
JA Solar N-Type 460 W - Bifacial Black Frame Solar Panel represents the next level of solar performance for residential, business and C&I installations. Powered by advanced N-type Bycium+ 16BB half-cut cell technology, it delivers 460 Wp output power with 23.0% module efficiency.
The JAM54D40-460/LB model combines a bifacial double-glass structure with a low-voltage, high-current architecture that optimises string configurations, captures rear-side irradiance and reduces overall Balance of System (BOS) costs.
Its double glass construction (1.6 mm front and 1.6 mm rear glass) with a gapless half-cut cell layout improves rooftop aesthetics and protects against micro-cracks, withstanding mechanical loads up to 5400 Pa positive and 2400 Pa negative.
The module features an IP68 junction box, 1500 V DC maximum system voltage and a temperature coefficient of Pmax of -0.290%/°C for reliable energy production at higher operating temperatures.
It comes with a 25-year product warranty and a 30-year linear power warranty, with 1% first-year degradation and 0.4% annual degradation over the following years.
Technical Features
- Product type: N-type double glass bifacial module, black frame
- Series: JA Solar Deep Blue 4.0 Pro (JAM54D40 LB)
- Model: JAM54D40-460/LB
- Rated power: 460 Wp
- Cell technology: N-type Monocrystalline (Bycium+ 16BB, MBB half-cut)
- Number of cells: 108 (6 x 18)
- Module efficiency: 23.0%
- Power tolerance: 0 ~ +3%
- Temperature coefficient of Pmax: -0.290%/°C
- Maximum system voltage: 1500 V DC
- Maximum series fuse rating: 30 A
- Dimensions: 1762 x 1134 x 30 mm
- Weight: 22 kg
- Glass: Dual glass, 1.6 mm front / 1.6 mm rear
- Frame: Anodised aluminium alloy, black finish
- Junction box: IP68, 3 diodes
- Mechanical load: 5400 Pa positive / 2400 Pa negative
-
Warranty: 25-year product wa#fff;">
Module Type: JAM54D40-460/LB 440 445 450 455 460 465 Peak Power Watts - Pmax (Wp) 440 445 450 455 460 465 Maximum Power Voltage - Vmpp (V) 32.47 32.65 32.82 33.00 33.17 33.50 Maximum Power Current - Impp (A) 13.55 13.63 13.71 13.79 13.87 13.88 Open Circuit Voltage - Voc (V) 38.90 39.10 39.30 39.50 39.70 40.20 Electrical Data (STC) Short Circuit Current - Isc (A) 14.31 14.40 14.48 14.56 14.64 14.65 Module Efficiency (STC, %) 22.0 22.3 22.5 22.8 23.0 23.3 Power Tolerance 0 ~ +3% STC Irradiance 1000 W/m2, Cell Temperature 25 C, Air Mass AM1.5 Temperature Ratings & Application
NOCT 45 C (+/-2 C) Temperature Coefficient of Pmax -0.290% / C Temperature Coefficient of Voc -0.250% / C Temperature Coefficient of Isc +0.045% / C Operating Temperature -40 C ~ +85 C Max Series Fuse Rating 30 A Packaging 36 pcs / pallet, 936 pcs / 40'HQ container Documentation
