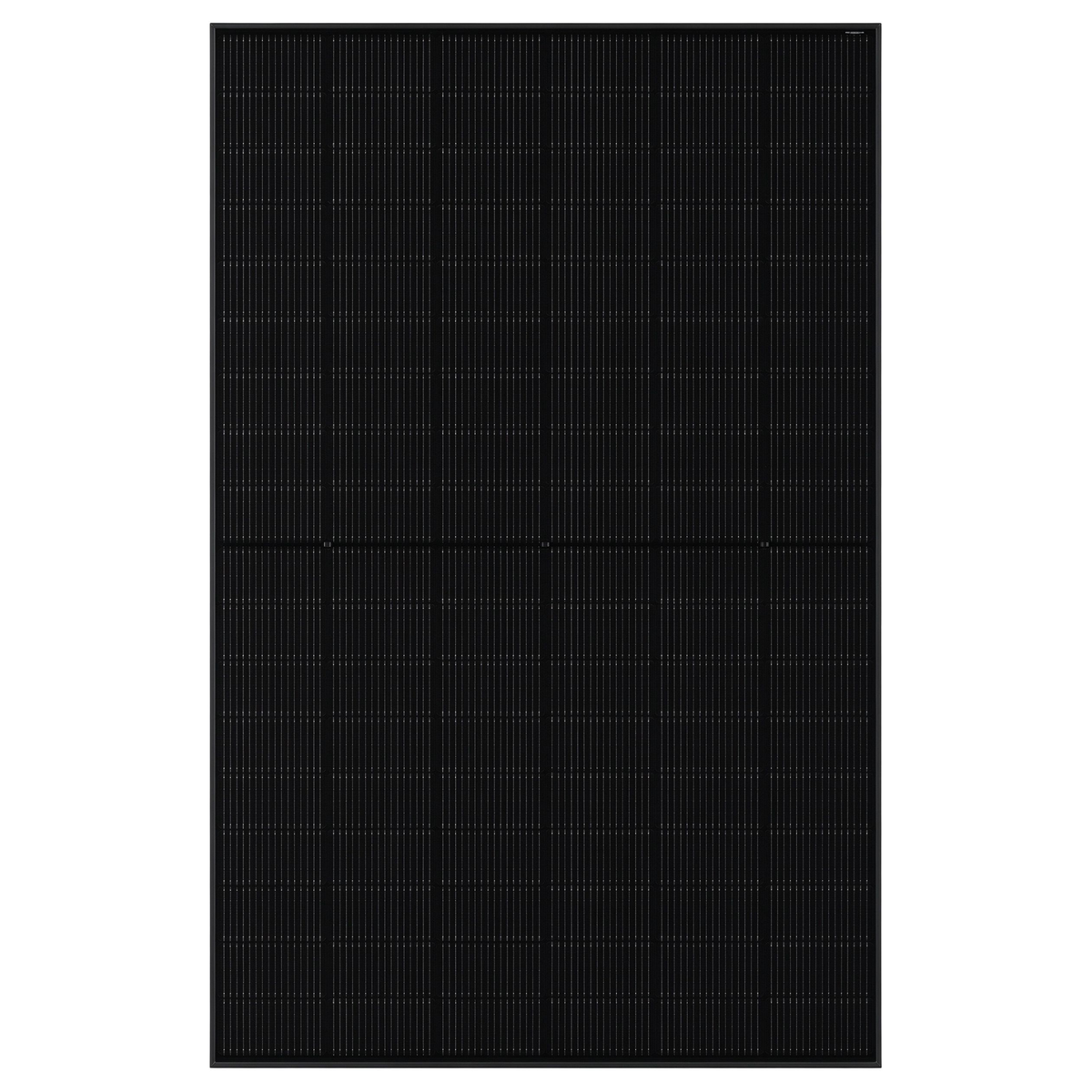

JA Solar N-Type 460 W - Bifacial Double Glass All Black Solar Panel
JA Solar N-Type 460 W - Bifacial Double Glass All Black Solar Panel
JA Solar N-Type 460 W - Bifacial Double Glass All Black Solar Panel represents the next level of solar performance for residential, business and C&I installations. Powered by advanced N-type Bycium+ 16BB half-cut cell technology, it delivers 460 Wp output power.
The JAM54D41-460/LB model pairs an all-black bifacial double-glass design with a low-voltage, high-current architecture that optimises string configurations, captures rear-side irradiance and reduces overall Balance of System (BOS) costs.
Its double glass construction (1.6 mm front and 1.6 mm rear glass) with a gapless half-cut cell layout improves rooftop aesthetics and protects against micro-cracks, withstanding mechanical loads up to 5400 Pa positive and 2400 Pa negative.
The module features an IP68 junction box, 1500 V DC maximum system voltage and a temperature coefficient of Pmax of -0.290%/°C for reliable energy production at higher operating temperatures.
It comes with a 25-year product warranty and a 30-year linear power warranty, with 1% first-year degradation and 0.4% annual degradation over the following years.
Technical Features
- Product type: N-type double glass bifacial all-black module
- Series: JA Solar Deep Blue 4.0 Pro (JAM54D41 LB)
- Model: JAM54D41-460/LB
- Rated power: 460 Wp
- Cell technology: N-type Monocrystalline (Bycium+ 16BB, MBB half-cut)
- Number of cells: 108 (6 x 18)
- Module efficiency: N/A
- Power tolerance: 0 ~ +3%
- Temperature coefficient of Pmax: -0.290%/°C
- Maximum system voltage: 1500 V DC
- Maximum series fuse rating: 30 A
- Dimensions: 1762 x 1134 x 30 mm
- Weight: 22 kg
- Glass: Dual glass, 1.6 mm front / 1.6 mm rear
- Frame: Anodised aluminium alloy, black finish
- Junction box: IP68, 3 diodes
- Mechanical load: 5400 Pa positive / 2400 Pa negative
- Warranty: 25-year product warranty / 30-year linear power warranty
Electrical Data (STC)
| Module Type: JAM54D41-460/LB | 430 | 435 | 440 | 445 | 450 | 455 | |
|---|---|---|---|---|---|---|---|
| Peak Power Watts - Pmax (Wp) | 430 | 435 | 440 | 445 | 450 | 455 | |
| Maximum Power Voltage - Vmpp (V) | 32.12 | 32.29 | 32.47 | 32.65 | 32.99 | 33.33 | |
| Maximum Power Current - Impp (A) | 13.39 | 13.47 | 13.55 | 13.63 | 13.64 | 13.65 | |
| Open Circuit Voltage - Voc (V) | 38.50 | 38.70 | 38.90 | 39.10 | 39.30 | 40.50 | |
| Short Circuit Current - Isc (A) | 14.14 | 14.23 | 14.31 | 14.41 | 14.41 | 14.42 | |
| Module Efficiency (STC, %) | 21.5 | 21.8 | 22.0 | 22.3 | 22.5 | 22.8 | |
| Power Tolerance | 0 ~ +3% | ||||||
| STC | Irradiance 1000 W/m2, Cell Temperature 25 C, Air Mass AM1.5 | ||||||
Temperature Ratings & Application
| NOCT | 45 C (+/-2 C) |
| Temperature Coefficient of Pmax | -0.290% / C |
| Temperature Coefficient of Voc | -0.250% / C |
| Temperature Coefficient of Isc | +0.045% / C |
| Operating Temperature | -40 C ~ +85 C |
| Max Series Fuse Rating | 30 A |
| Packaging | 36 pcs / pallet, 936 pcs / 40'HQ container |
