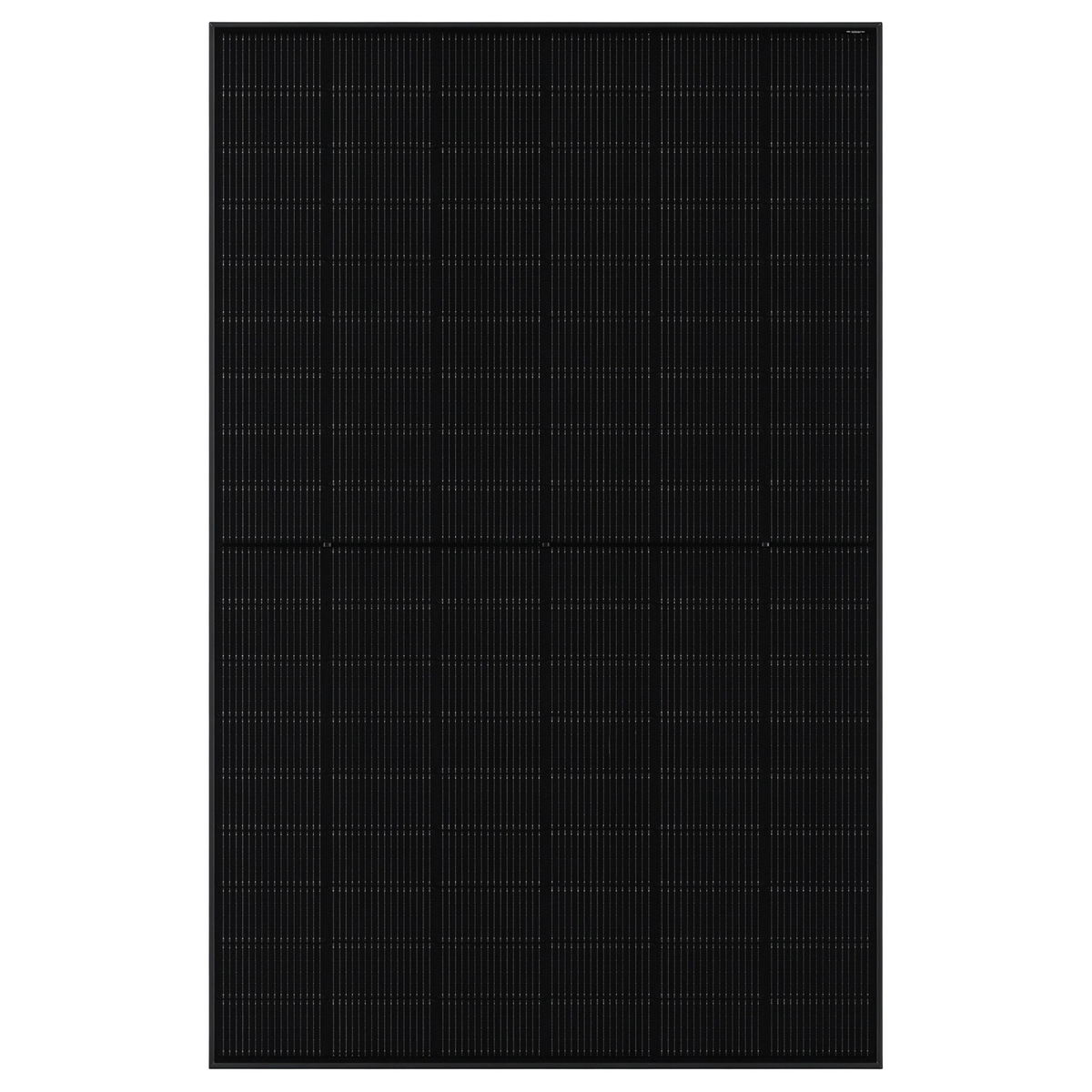

JA Solar N-Type 460 W - Monofacial Double Glass All Black Solar Panel
JA Solar N-Type 460 W - Monofacial Double Glass All Black Solar Panel
JA Solar N-Type 460 W - Monofacial Double Glass All Black Solar Panel represents the next level of solar performance for residential, business and C&I installations.
Powered by advanced n-type Bycium+ 16BB half-cut cell technology, the JAM54D41-460/LR model delivers 460 Wp output power with 23.0% module efficiency.
Its double glass construction (1.6 mm front and back heat-strengthened glass) protects against micro-cracks and environmental corrosion, withstanding mechanical loads up to 5400 Pa positive and 2400 Pa negative.
The module features an IP68 junction box, 1500 V DC maximum system voltage and a temperature coefficient of Pmax of -0.290%/°C for reliable energy production at higher operating temperatures.
It comes with a 25-year product warranty and a 30-year linear power warranty, with 1% first-year degradation and 0.4% annual degradation over the following years.
Technical Features
- Product type: n-type Monofacial Double Glass module, all black
- Series: JA Solar JAM54D41 LR
- Model: JAM54D41-460/LR
- Rated power: 460 Wp
- Cell technology: n-type Bycium+ 16BB Monocrystalline, MBB half-cut
- Number of cells: 108
- Module efficiency: 23.0%
- Power tolerance: 0 ~ +3%
- Temperature coefficient of Pmax: -0.290%/°C
- Maximum system voltage: 1500 V DC (IEC)
- Maximum series fuse rating: 25 A
- Dimensions: 1762 x 1134 x 30 mm
- Weight: 22 kg
- Glass: Dual glass, 1.6 mm front / 1.6 mm rear
- Frame: Anodized aluminium alloy, black finish
- Junction box: IP68
- Mechanical load: 5400 Pa positive / 2400 Pa negative
- Warranty: 25-year product warranty / 30-year linear power warranty
Electrical Data (STC)
| Module Type: JAM54D41-460/LR | 440 | 445 | 450 | 455 | 460 | 465 | |
|---|---|---|---|---|---|---|---|
| Peak Power Watts - Pmax (Wp) | 440 | 445 | 450 | 455 | 460 | 465 | |
| Maximum Power Voltage - Vmpp (V) | 32.47 | 32.65 | 32.99 | 33.33 | 33.68 | 34.02 | |
| Maximum Power Current - Impp (A) | 13.55 | 13.63 | 13.64 | 13.65 | 13.66 | 13.67 | |
| Open Circuit Voltage - Voc (V) | 38.90 | 39.10 | 40.30 | 40.50 | 40.60 | 40.70 | |
| Short Circuit Current - Isc (A) | 14.31 | 14.40 | 14.41 | 14.42 | 14.43 | 14.44 | |
| Module Efficiency (STC, %) | 22.0 | 22.3 | 22.5 | 22.8 | 23.0 | 23.3 | |
| Power Tolerance | 0 ~ +3% | ||||||
| STC | Irradiance 1000 W/m2, Cell Temperature 25 C, Air Mass AM1.5G | ||||||
Temperature Ratings & Application
| NOCT | 45 C (+/-2 C) |
| Temperature Coefficient of Pmax | -0.290% / C |
| Temperature Coefficient of Voc | -0.250% / C |
| Temperature Coefficient of Isc | +0.045% / C |
| Operating Temperature | -40 C ~ +85 C |
| Max Series Fuse Rating | 25 A |
| Packaging | 36 pcs / pallet, 936 pcs / 40' HQ container |
