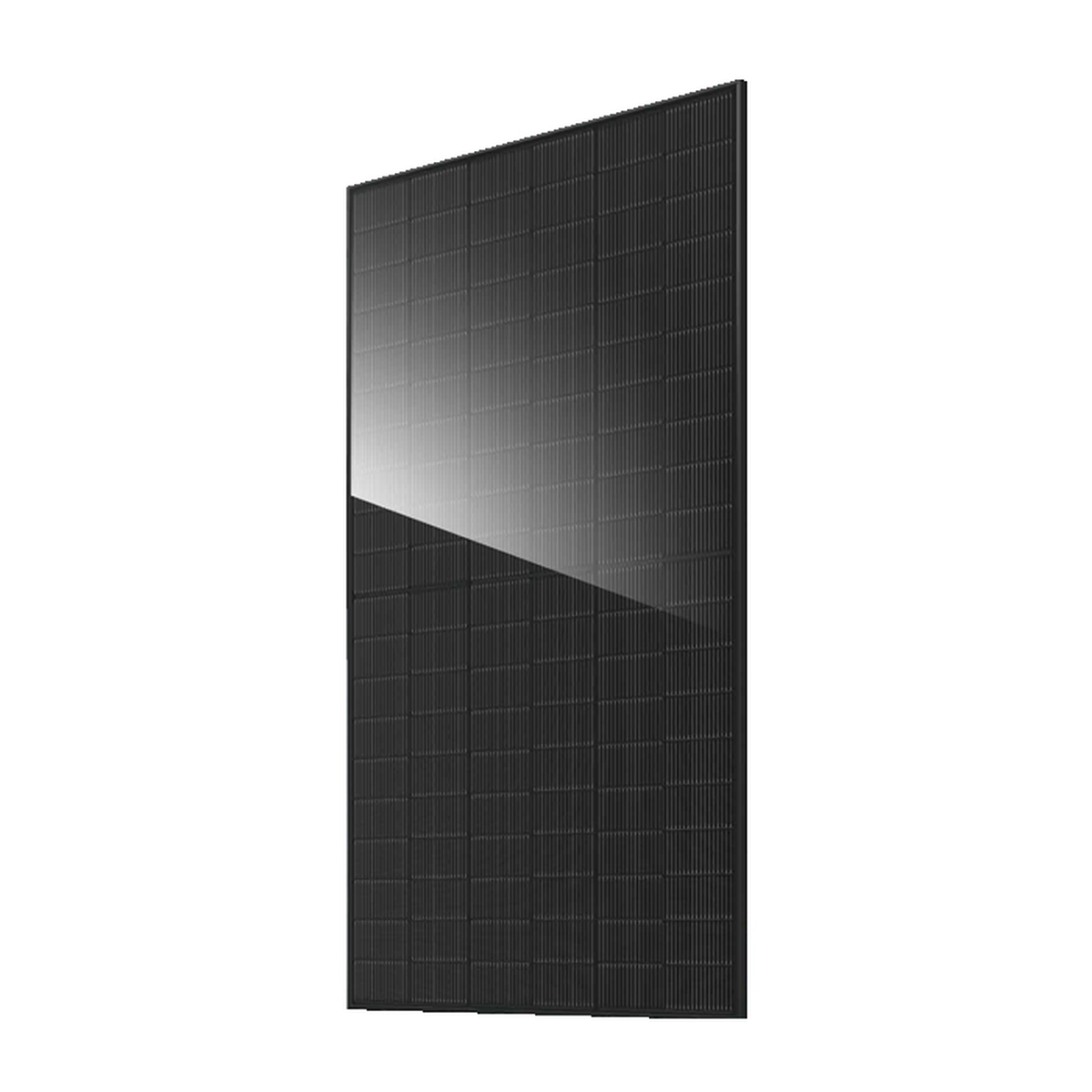

JA Solar N-Type 500 W - Bifacial Double Glass All Black Solar Panel
JA Solar N-Type 500 W - Bifacial Double Glass All Black Solar Panel
JA Solar N-Type 500 W - Bifacial Double Glass All Black Solar Panel represents the next level of solar performance for residential, business and C&I installations.
Powered by advanced n-type Bycium+ 16BB half-cut bifacial cell technology, the JAM60D41-500/LB model delivers 500 Wp output power with 22.6% module efficiency.
Its dual glass construction (2.0 mm front and back heat-strengthened glass) with bifacial cells converts rear-side light into extra energy, withstanding mechanical loads up to 5400 Pa positive and 2400 Pa negative.
The module features an IP68 junction box, 1500 V DC maximum system voltage and a temperature coefficient of Pmax of -0.290%/°C for reliable energy production at higher operating temperatures.
It comes with a 25-year product warranty and a 30-year linear power warranty, with 1% first-year degradation and 0.4% annual degradation over the following years.
Technical Features
- Product type: n-type Bifacial Double Glass module, all black
- Series: JA Solar JAM60D41 LB
- Model: JAM60D41-500/LB
- Rated power: 500 Wp
- Cell technology: n-type Bycium+ 16BB Monocrystalline, MBB half-cut, bifacial
- Number of cells: 120
- Module efficiency: 22.6%
- Power tolerance: 0 ~ +3%
- Temperature coefficient of Pmax: -0.290%/°C
- Maximum system voltage: 1500 V DC (IEC)
- Maximum series fuse rating: 30 A
- Dimensions: 1953 x 1134 x 30 mm
- Weight: 27.3 kg
- Glass: Dual glass, 2.0 mm front / 2.0 mm rear
- Frame: Anodized aluminium alloy, black finish
- Junction box: IP68
- Mechanical load: 5400 Pa positive / 2400 Pa negative
- Warranty: 25-year product warranty / 30-year linear power warranty
Electrical Data (STC)
| Module Type: JAM60D41-500/LB | 485 | 490 | 495 | 500 | 505 | 510 | |
|---|---|---|---|---|---|---|---|
| Peak Power Watts - Pmax (Wp) | 485 | 490 | 495 | 500 | 505 | 510 | |
| Maximum Power Voltage - Vmpp (V) | 36.28 | 36.49 | 36.70 | 36.91 | 37.11 | 37.31 | |
| Maximum Power Current - Impp (A) | 13.37 | 13.43 | 13.49 | 13.55 | 13.61 | 13.67 | |
| Open Circuit Voltage - Voc (V) | 43.25 | 43.45 | 43.65 | 43.85 | 44.05 | 44.25 | |
| Short Circuit Current - Isc (A) | 14.24 | 14.30 | 14.36 | 14.42 | 14.48 | 14.54 | |
| Module Efficiency (STC, %) | 21.9 | 22.1 | 22.4 | 22.6 | 22.8 | 23.0 | |
| Power Tolerance | 0 ~ +3% | ||||||
| STC | Irradiance 1000 W/m2, Cell Temperature 25 C, Air Mass AM1.5G | ||||||
Temperature Ratings & Application
| NOCT | 45 C (+/-2 C) |
| Temperature Coefficient of Pmax | -0.290% / C |
| Temperature Coefficient of Voc | -0.250% / C |
| Temperature Coefficient of Isc | +0.045% / C |
| Operating Temperature | -40 C ~ +85 C |
| Max Series Fuse Rating | 30 A |
| Packaging | 36 pcs / pallet, 864 pcs / 40' HQ container |
