QLbattery
QGS30kW 30kW C&I Energy Storage Cabinet
QGS30kW 30kW C&I Energy Storage Cabinet

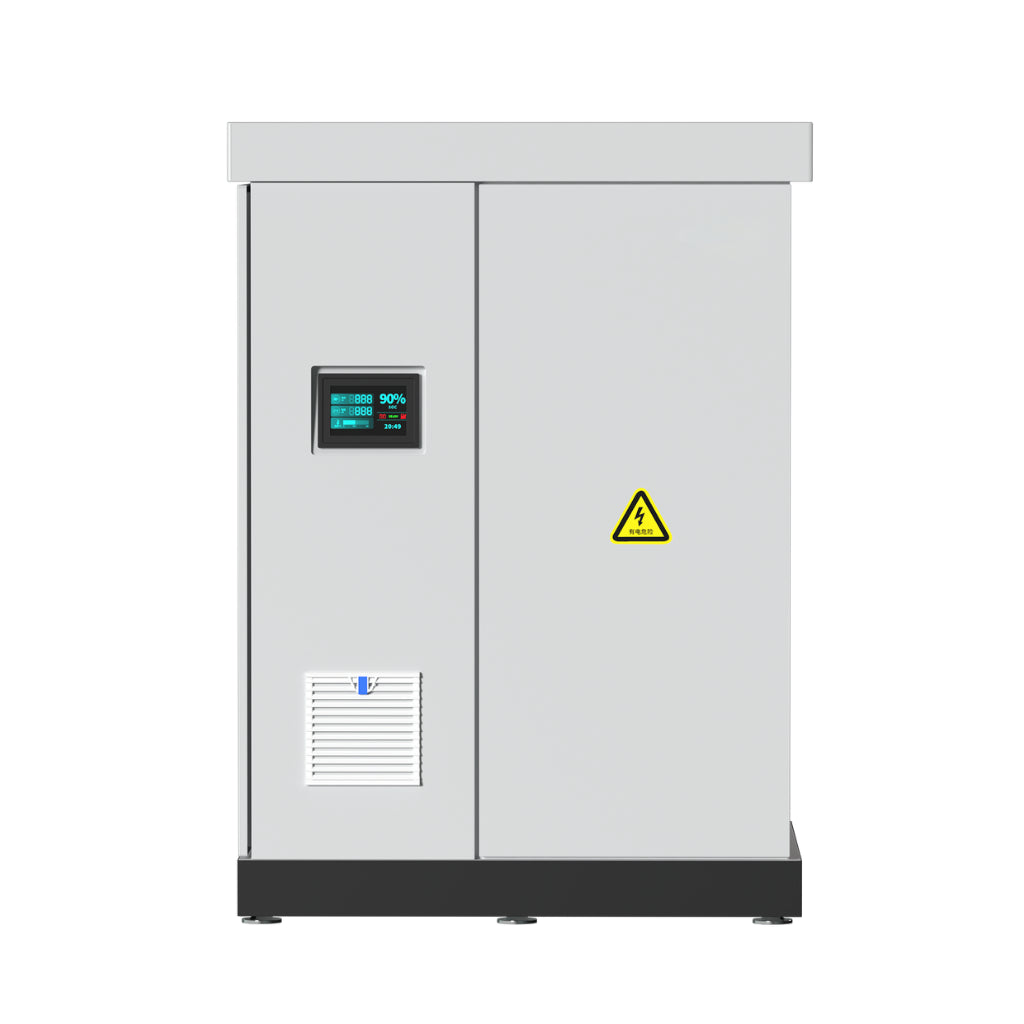

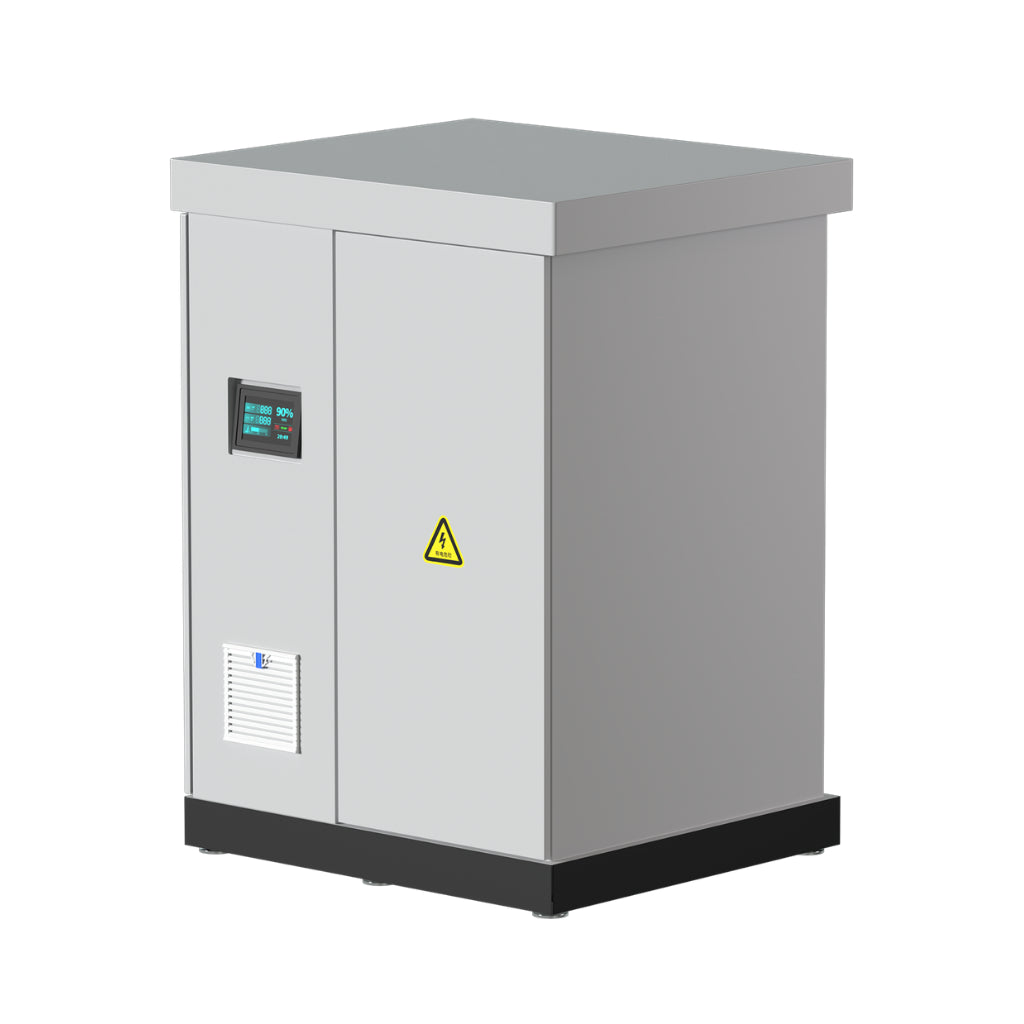

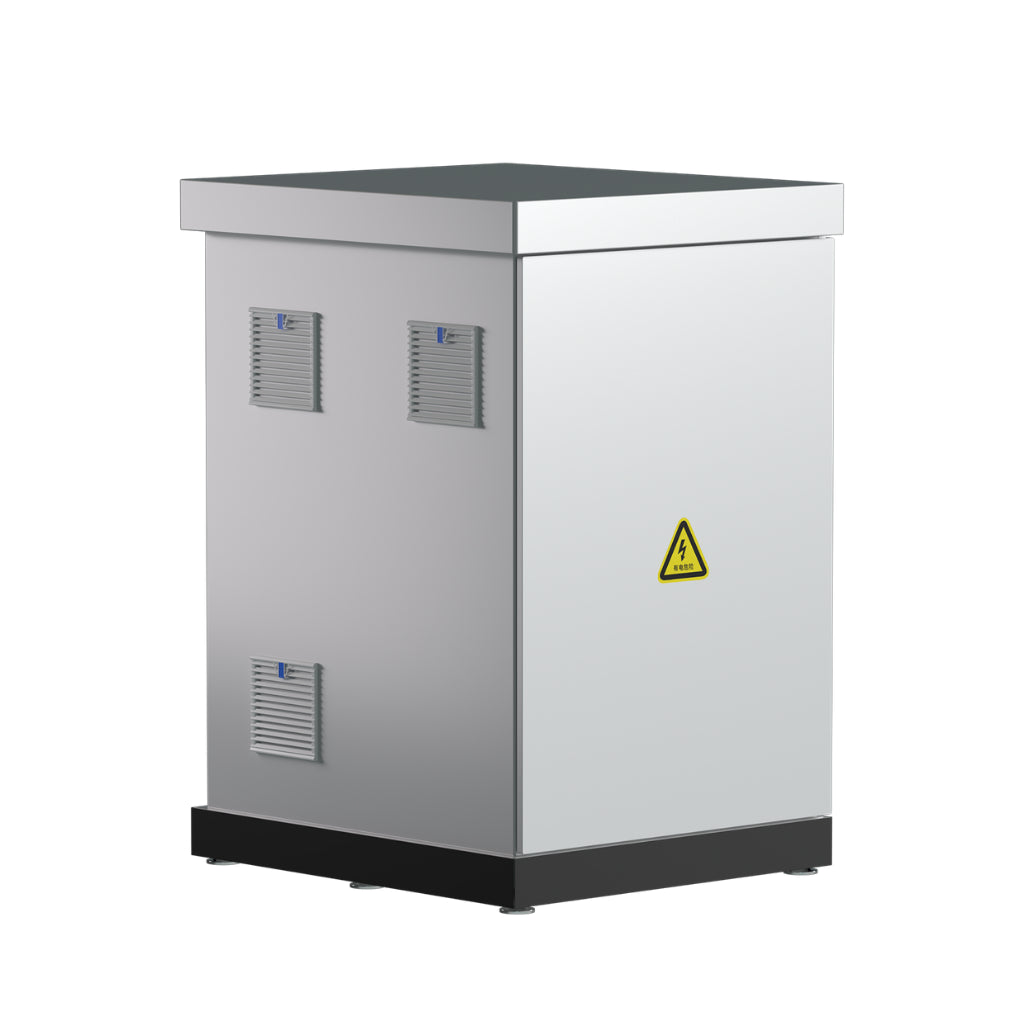

The QGS30kW is an outdoor 30kW industrial & commercial energy storage cabinet with 61.44kWh of LiFePO4 battery capacity, integrating battery, BMS, hybrid inverter and cooling in a single IP54 enclosure.
It provides three-phase 220/380V or 230/400V output with peak shaving, load shifting and outage backup, accepts PV input for solar self-consumption, and supports fan, air-conditioner and liquid cooling options. The two-layer BMS with digital LCD enables local monitoring and control.

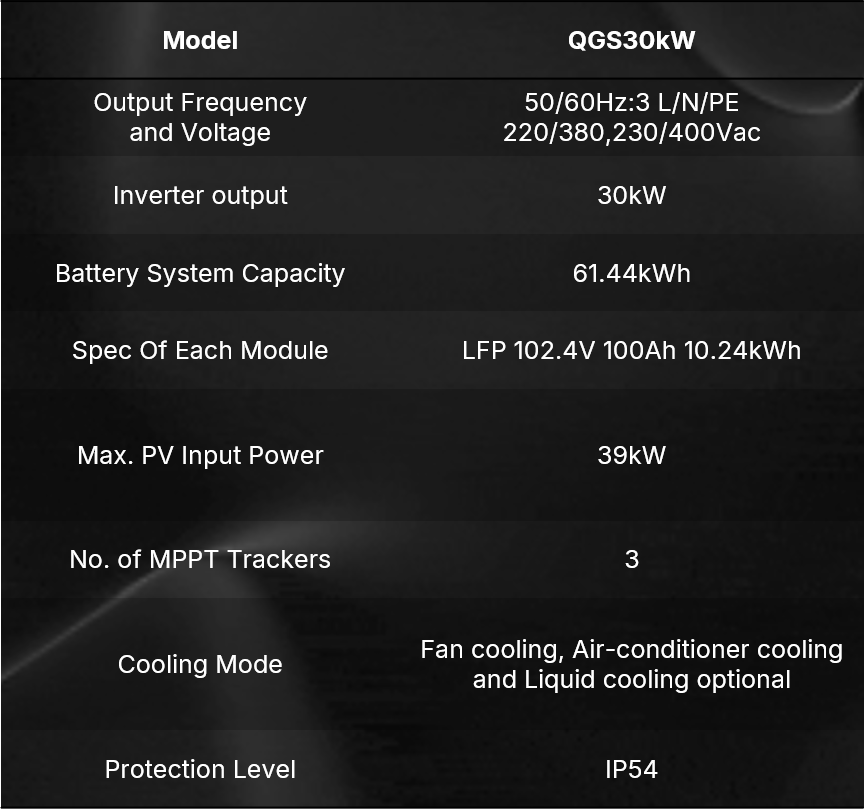

Key Specifications
| Rated power | 30kW |
| Battery capacity | 61.44kWh |
| Battery modules | 6 x 10.24kWh (102.4V) |
| Output | 50/60Hz, 3L/N/PE 220/380 or 230/400VAC |
| Grid type | Three phase |
| THD | <3% |
| PV input | Max 39-100kW / 1000V by model |
| Cooling | Fan / air conditioner / liquid cooling optional |
| Protection | IP54 |
| Weight | 900kg / 1130kg (GW) |
| Size | 1170*1031*1635mm |
Applications
- Industrial & commercial facilities
- Data centers and industrial parks
- Peak shaving and load shifting
- Mobile energy storage and power quality
FAQ

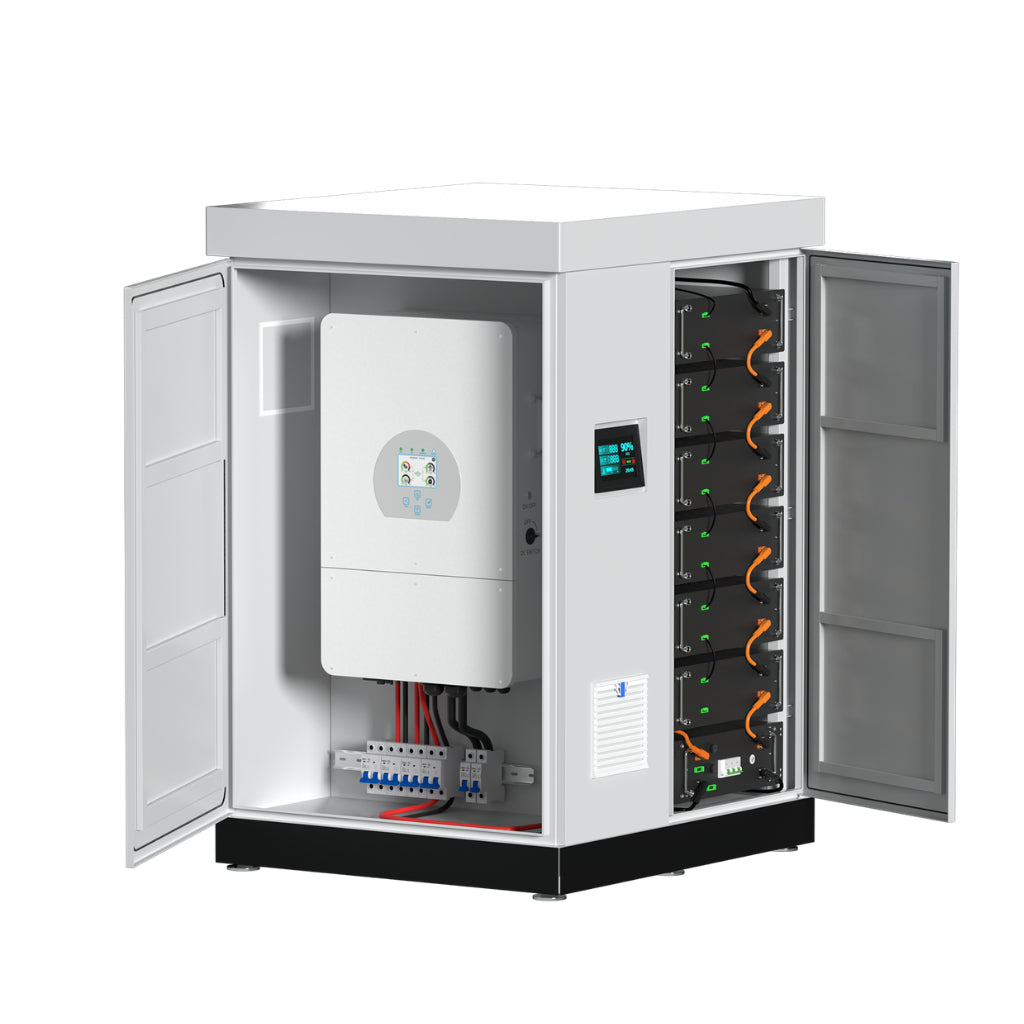

What does the cabinet include? Battery pack, two-layer BMS, hybrid inverter (PCS), cooling and digital LCD monitoring.
Is it weatherproof for outdoor use? Yes, IP54 protection with optional AC/liquid cooling.
Can it work with solar? Yes, integrated PV input with MPPT for solar self-consumption.
What is the battery chemistry? Grade A LiFePO4 with long cycle life and BMS protection.
Do you support OEM/ODM? Yes, QLbattery supports customization and wholesale.
QLbattery is a 15-year LiFePO4 energy storage factory supporting OEM/ODM and wholesale. Contact us for pricing, lead time and the latest datasheet.
