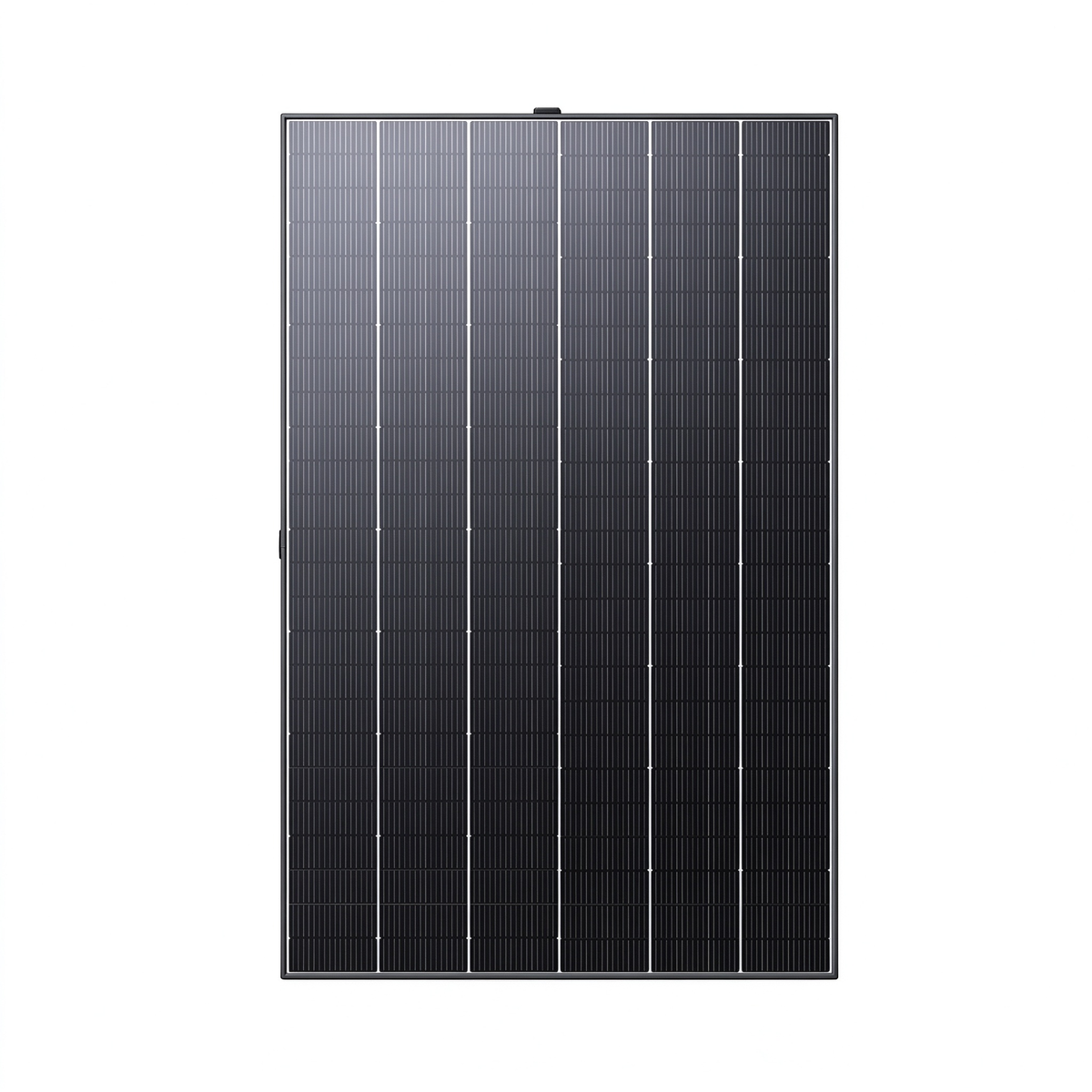

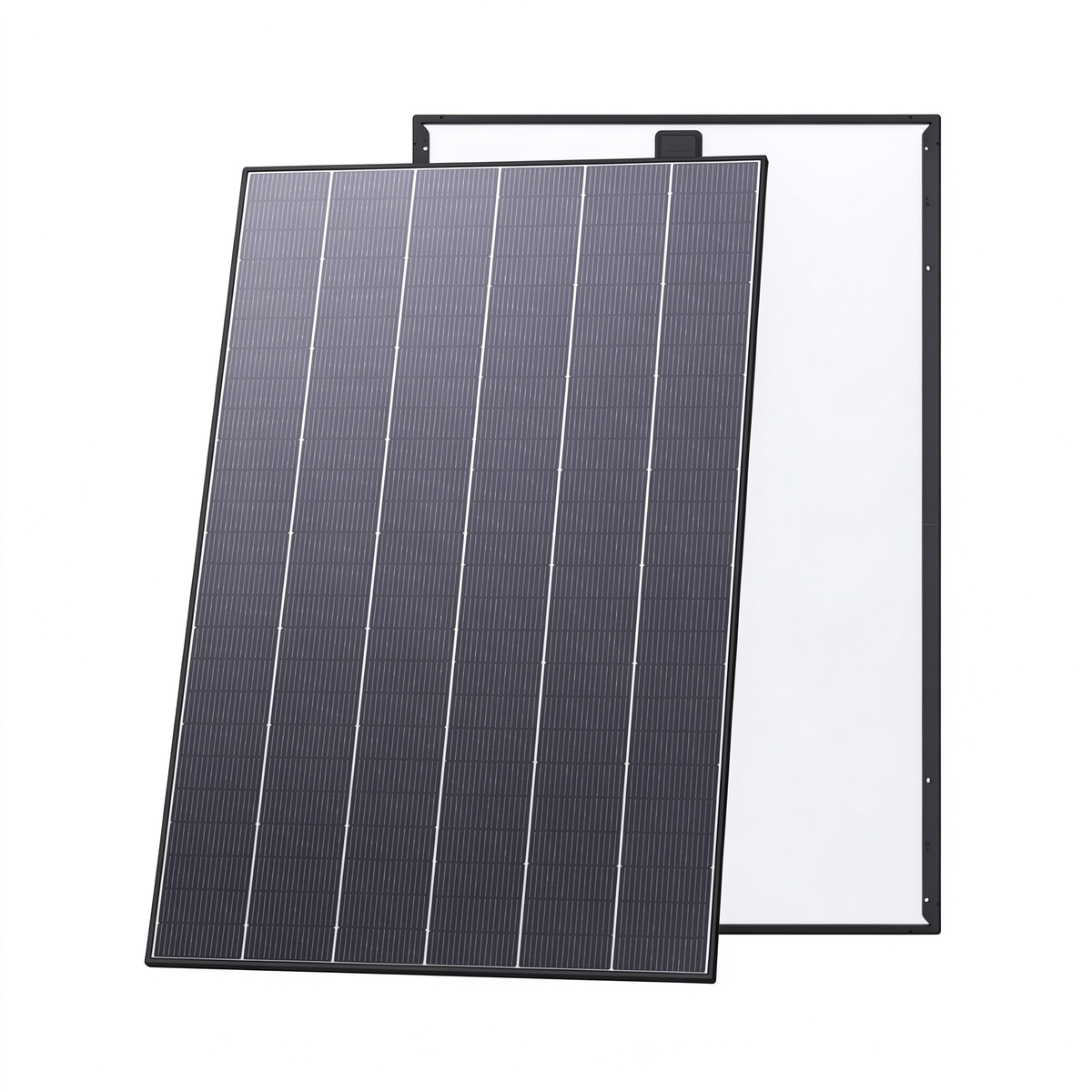

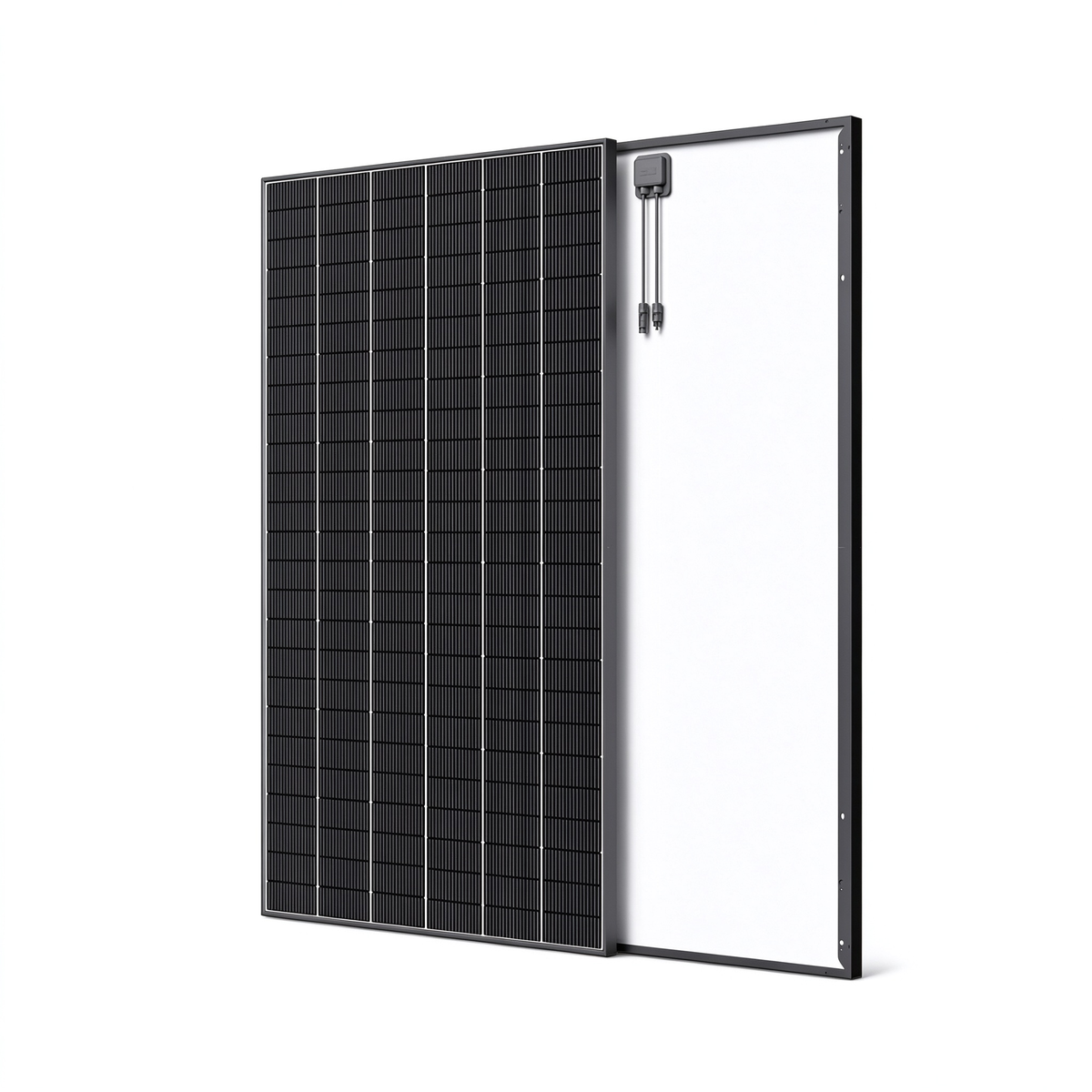

Trina Vertex S+ G3 N-Type Dual Glass 485W - Triple-Cut 1500V Black Frame Solar Panel
Trina Vertex S+ G3 N-Type Dual Glass 485W - Triple-Cut 1500V Black Frame Solar Panel
Trina Vertex S+ G3 N-Type Dual Glass 485W solar panel represents the next level of solar performance for residential, business and C&I installations. Powered by advanced N-type i-TOPCon Ultra cell technology, it delivers 485 Wp output power with 24.3% module efficiency.
The TSM-485-NEG9RP.28Z-MC4-EVO2 model uses a low-voltage, high-current architecture that optimizes string configurations, simplifies system design and reduces overall Balance of System (BOS) costs.

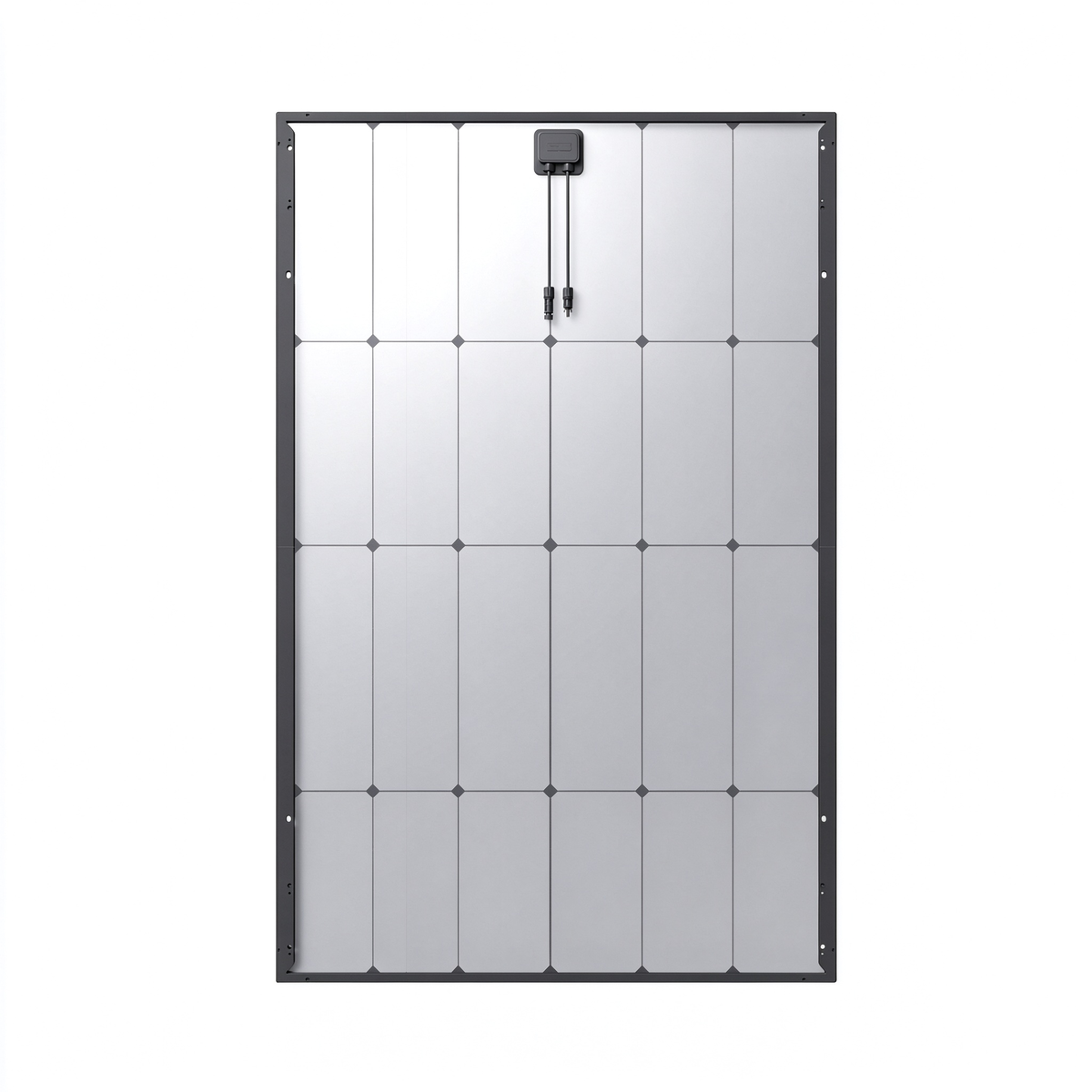

Its dual glass construction (1.6 mm front and back heat-strengthened glass) with a gapless cell layout improves rooftop aesthetics and protects against micro-cracks, withstanding mechanical loads up to 5400 Pa positive and 3600 Pa negative.
The module features an IP68 junction box, 1500 V DC maximum system voltage and a temperature coefficient of Pmax of -0.26%/°C for reliable energy production at higher operating temperatures.
It comes with a 25-year product warranty and a 30-year linear power warranty, with 1% first-year degradation and 0.35% annual degradation over the following years.
Technical Features
- Product type: N-type i-TOPCon dual glass module
- Series: Trina Vertex S+ G3
- Model: TSM-485-NEG9RP.28Z-MC4-EVO2
- Rated power: 485 Wp
- Cell technology: N-type i-TOPCon Ultra Monocrystalline
- Number of cells: 150
- Module efficiency: 24.3%
- Power tolerance: 0 ~ +5 W
- Temperature coefficient of Pmax: -0.26%/°C
- Maximum system voltage: 1500 V DC (IEC)
- Maximum series fuse rating: 30 A
- Dimensions: 1762 x 1134 x 30 mm
- Weight: 21.7 kg
- Glass: Dual glass, 1.6 mm front / 1.6 mm rear
- Frame: Anodized aluminium alloy, black finish
- Junction box: IP68
- Mechanical load: 5400 Pa positive / 3600 Pa negative
- Warranty: 25-year product warranty / 30-year linear power warranty
Electrical Data (STC)
| Module Type: TSM-485-NEG9RP.28Z-MC4-EVO2 | 465 | 470 | 475 | 480 | 485 |
|---|---|---|---|---|---|
| Peak Power Watts - Pmax (Wp) | 465 | 470 | 475 | 480 | 485 |
| Maximum Power Voltage - Vmpp (V) | 31.20 | 31.50 | 31.80 | 32.00 | 32.30 |
| Maximum Power Current - Impp (A) | 14.91 | 14.93 | 14.96 | 15.00 | 15.04 |
| Open Circuit Voltage - Voc (V) | 37.10 | 37.30 | 37.40 | 37.70 | 37.90 |
| Short Circuit Current - Isc (A) | 15.96 | 15.99 | 16.02 | 16.05 | 16.08 |
| Module Efficiency (STC, %) | 23.3 | 23.5 | 23.8 | 24.0 | 24.3 |
| Power Tolerance | 0 ~ +5 W | ||||
| STC | Irradiance 1000 W/m2, Cell Temperature 25 C, Air Mass AM1.5 | ||||
Temperature Ratings & Application
| NOCT | 43 C (+/-2 C) |
| Temperature Coefficient of Pmax | -0.26% / C |
| Temperature Coefficient of Voc | -0.24% / C |
| Temperature Coefficient of Isc | 0.04% / C |
| Operating Temperature | -40 C ~ +70 C |
| Max Series Fuse Rating | 30 A |
| Packaging | 37 pcs / box, 962 pcs / 40' container |
