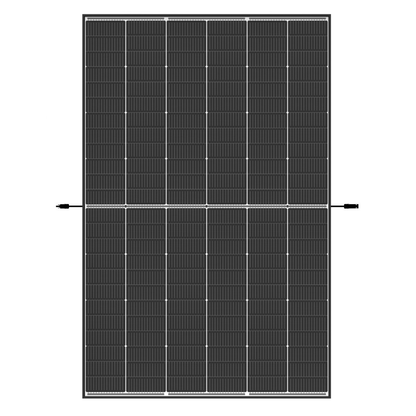

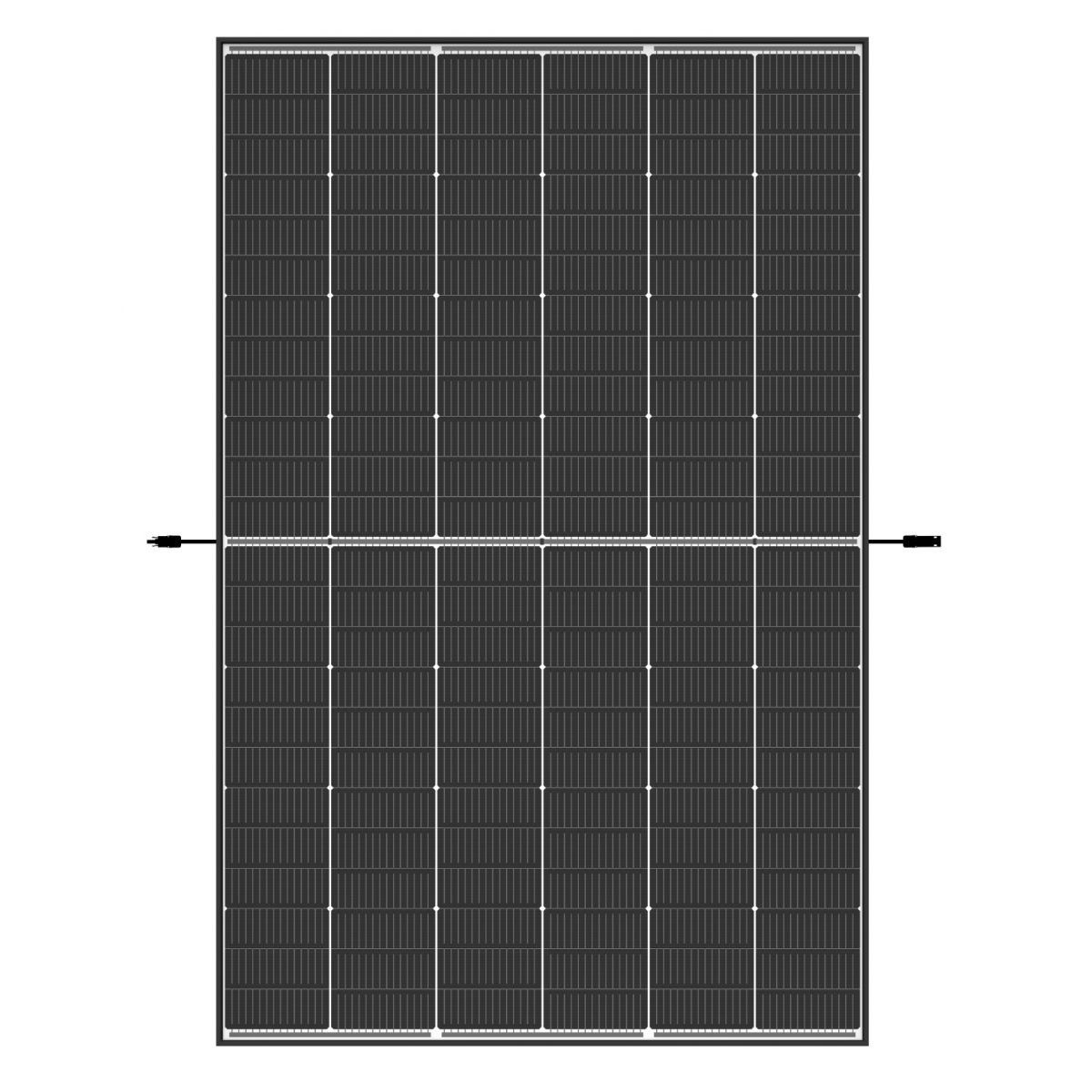

Trina Vertex S+ N-Type Dual Glass 470W - Triple-Cut 1500V Black Frame Solar Panel
Trina Vertex S+ N-Type Dual Glass 470W - Triple-Cut 1500V Black Frame Solar Panel
Trina Vertex S+ N-Type Dual Glass 470W solar panel represents the next level of solar performance for residential, business and C&I installations. Powered by advanced N-type i-TOPCon cell technology, it delivers 470 Wp output power with 23.5% module efficiency.
The TSM-470-NEG9R.28-MC4-EVO2 model combines high-density interconnect technology with a compact triple-cut form factor, optimizing yield on residential and commercial rooftops and integrating easily with mainstream inverters and mounting systems.

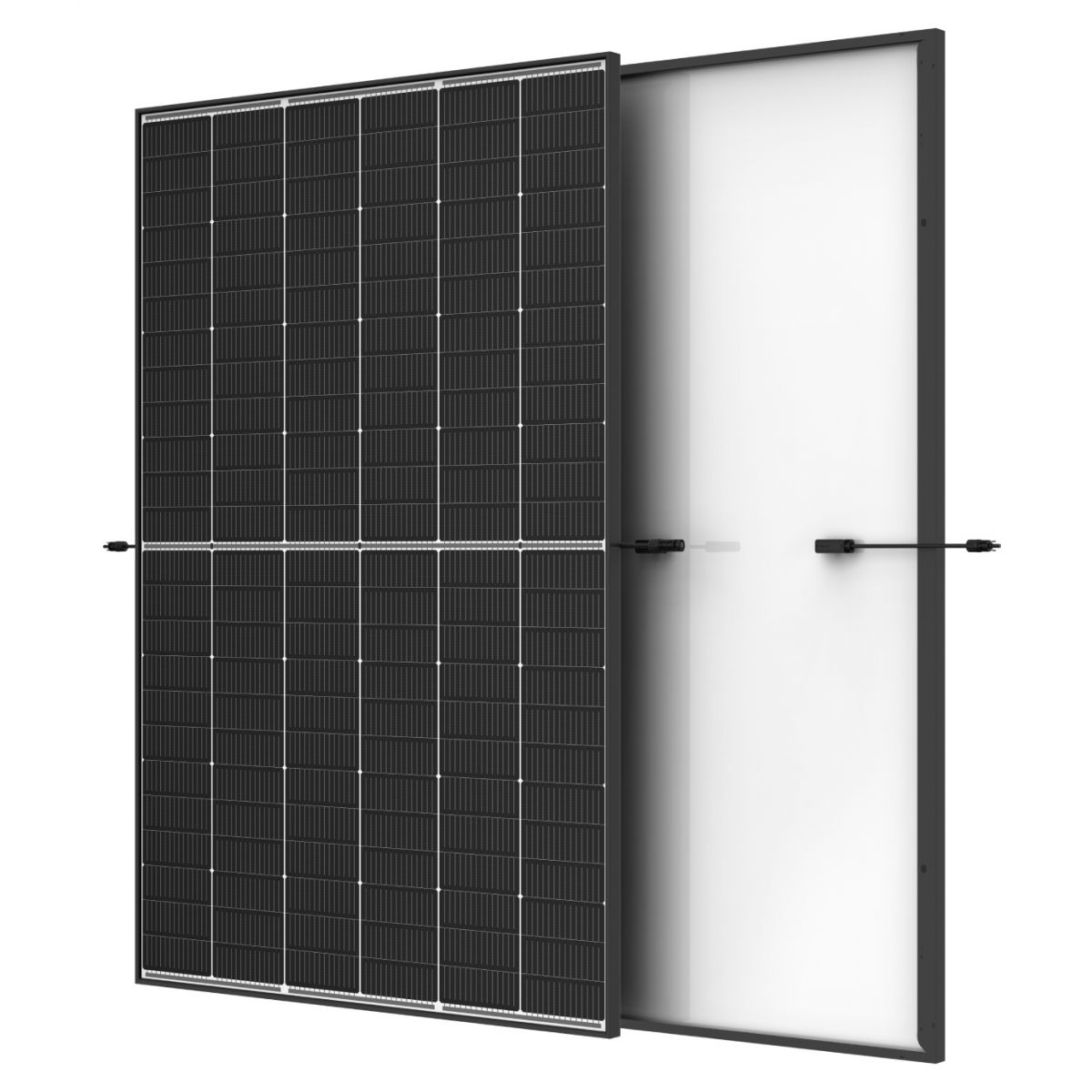

Its dual glass construction (1.6 mm front and 1.6 mm rear heat-strengthened glass) protects against micro-cracks and harsh environmental conditions, withstanding mechanical loads up to 5400 Pa positive and 4000 Pa negative.
The module features an IP68 junction box, 1500 V DC maximum system voltage and a temperature coefficient of Pmax of -0.29%/°C for reliable energy production at higher operating temperatures.
It comes with a 25-year product warranty and a 30-year linear power warranty, with 1% first-year degradation and 0.4% annual degradation over the following years.
Technical Features
- Product type: N-type i-TOPCon dual glass module
- Series: Trina Vertex S+
- Model: TSM-470-NEG9R.28-MC4-EVO2
- Rated power: 470 Wp
- Cell technology: N-type i-TOPCon Monocrystalline
- Number of cells: 144
- Module efficiency: 23.5%
- Power tolerance: 0 ~ +5 W
- Temperature coefficient of Pmax: -0.29%/°C
- Maximum system voltage: 1500 V DC (IEC)
- Maximum series fuse rating: 25 A
- Dimensions: 1762 x 1134 x 30 mm
- Weight: 22.0 kg
- Glass: Dual glass, 1.6 mm front / 1.6 mm rear
- Frame: Anodized aluminium alloy, black finish
- Junction box: IP68
- Mechanical load: 5400 Pa positive / 4000 Pa negative
- Warranty: 25-year product warranty / 30-year linear power warranty
Electrical Data (STC)
| Module Type: TSM-470-NEG9R.28-MC4-EVO2 | 450 | 455 | 460 | 465 | 470 | 475 |
|---|---|---|---|---|---|---|
| Peak Power Watts - Pmax (Wp) | 450 | 455 | 460 | 465 | 470 | 475 |
| Maximum Power Voltage - Vmpp (V) | 44.6 | 45.0 | 45.4 | 45.8 | 46.1 | 46.4 |
| Maximum Power Current - Impp (A) | 10.09 | 10.11 | 10.14 | 10.16 | 10.20 | 10.24 |
| Open Circuit Voltage - Voc (V) | 52.9 | 53.4 | 53.8 | 54.2 | 54.6 | 55.0 |
| Short Circuit Current - Isc (A) | 10.74 | 10.77 | 10.81 | 10.85 | 10.89 | 10.93 |
| Module Efficiency (STC, %) | 22.5 | 22.8 | 23.0 | 23.3 | 23.5 | 23.8 |
| Power Tolerance | 0 ~ +5 W | |||||
| STC | Irradiance 1000 W/m2, Cell Temperature 25 C, Air Mass AM1.5 | |||||
Temperature Ratings & Application
| NOCT | 43 C (+/-2 C) |
| Temperature Coefficient of Pmax | -0.29% / C |
| Temperature Coefficient of Voc | -0.24% / C |
| Temperature Coefficient of Isc | 0.04% / C |
| Operating Temperature | -40 C ~ +70 C |
| Max Series Fuse Rating | 25 A |
| Packaging | 36 pcs / box, 936 pcs / 40' container |
